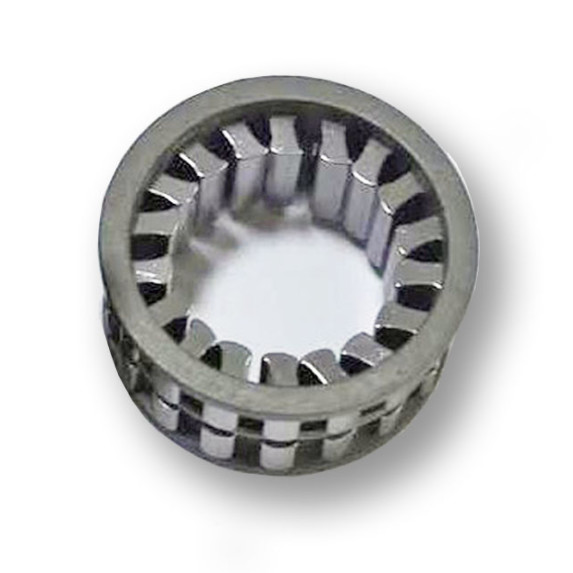

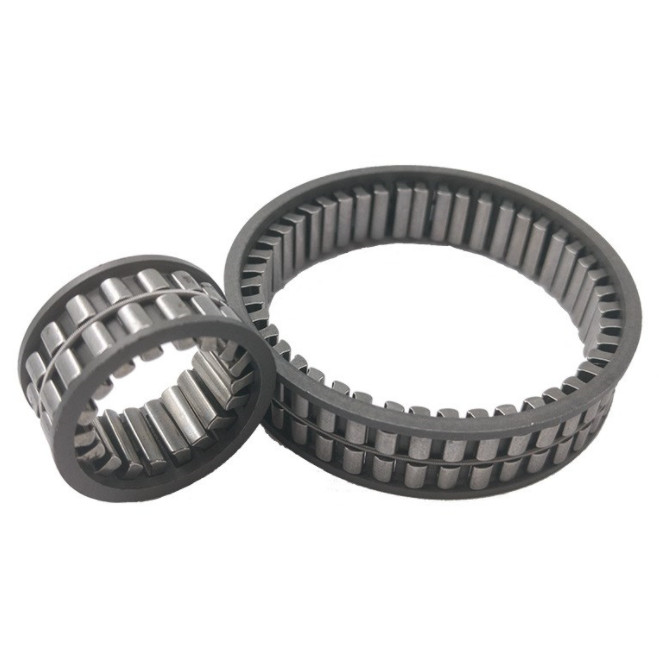

FE463Z Backstop Clutch FE468Z Overrunning Clutch FE Series Miniature Sprag Clutch Gcr15

Brand Name : BLUEN

Model Number : FE463Z/FE468Z

Certification : ISO

Place of Origin : CHINA

MOQ : 1 PIECE

Price : USD5-USD7PER PIECE

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 100000PCS Per Month

Delivery Time : 2 Days

Packaging Details : Each in plastic bag + Carton Box

Model No. : FE463Z/FE468Z

Material : GCr15

Surface Treatment : Heat Treatment

Port Name : Shanghai / Ningbo

Service : OEM / ODM

Warranty : 1 Year

Contact Now

FE463Z Backstop Clutch FE468Z Overrunning Clutch FE Series Miniature Sprag Clutch Gcr15

Features

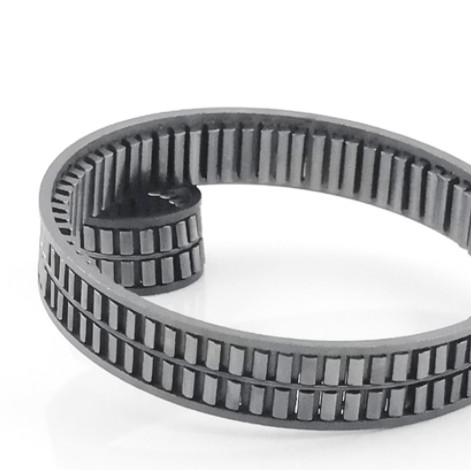

The sprags are evenly spaced around the circumference of the insert element cage.

Sprag type freewheel clutches with a plastic cage in their standard design are also available as a special design with a steel cage on request.

Operating temperature:

Steel cage: max. 170C

Plastic cage: max. 140C

Technical Parameter


FE463Z Backstop Clutch FE468Z Overrunning Clutch FE Series Miniature Sprag Clutch Gcr15

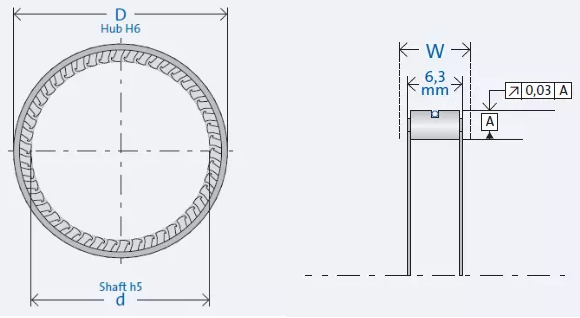

Drawing legend:

d = inner diameter D = outer diameter W = width T = torque n = rotation speed

Designation

d

[mm]

D

[mm]

W

[mm]

Tnom

[Nm]

nmax

[rpm]

Weight

[kg]

 Item no.
FE 412 Z 4 12 12 4 27,000 0.003 300393
FE 416 Z 8 16 12 16 19,200 0.006 300400
FE 420 Z 12 20 12 35 12,500 0.007 306041
FE 422 Z 14 22 12 53 10,100 0.008 300405
FE 423 Z 15 23 12 62 9,200 0.009 300411
FE 425 Z 17 25 12 72 8,100 0.011 300415
FE 427 Z 19 27 12 83 7,400 0.013 300422
FE 428 Z 20 28 12 93 7,500 0.013 300430
FE 430 Z 22 30 12 107 6,300 0.014 300435
FE 432 Z 24 32 12 117 5,900 0.016 300439
FE 433 Z 25 33 12 128 6,000 0.016 300445
FE 435 Z 27 35 12 143 5,100 0.017 300448
FE 437 Z 29 37 12 154 4,800 0.018 300455
FE 438 Z 30 38 12 166 4,900 0.019 300460
FE 442 Z 34 42 12 198 4,400 0.018 300463
FE 443 Z 35 43 12 207 4,300 0.022 300469
FE 448 Z 40 48 12 248 4,200 0.024 300478
FE 453 Z 45 53 12 293 3,400 0.022 300482
FE 455 Z 47 55 12 313 3,300 0.026 300487
FE 458 Z 50 58 12 344 3,100 0.029 300489
FE 459 Z 51 59 12 353 3,000 0.030 300494
FE 463 Z 55 63 12 393 2,900 0.032 300497
FE 468 Z 60 68 12 444 2,700 0.034 300501
FE 470 Z 62 70 12 465 2,600 0.035 300505
FE 473 Z 65 73 12 495 2,500 0.037 300508
FE 478 Z 70 78 12 548 2,600 0.039 300511
FE488Z 80 88 12 657 2,100 0.045 300514
FE 508 Z 100 108 12 889 1,700 0.055 300519
FE 528 Z 120 128 12 1,127 1,300 0.066 300522
FE 648 Z 240 248 12 2,673 800 0.131 300524



FE463Z Backstop Clutch FE468Z Overrunning Clutch FE Series Miniature Sprag Clutch Gcr15FE463Z Backstop Clutch FE468Z Overrunning Clutch FE Series Miniature Sprag Clutch Gcr15FE463Z Backstop Clutch FE468Z Overrunning Clutch FE Series Miniature Sprag Clutch Gcr15

FE463Z Backstop Clutch FE468Z Overrunning Clutch FE Series Miniature Sprag Clutch Gcr15
